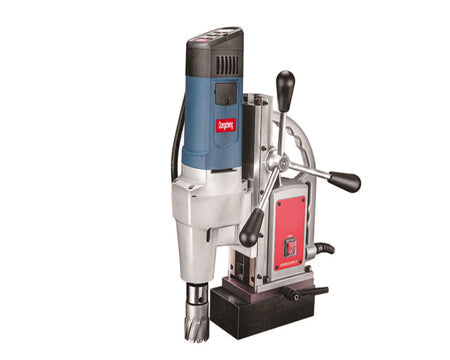

DONGCHENG DJC 02-23 MAGNETIC DRILL

Description:

Dongcheng Magnetic Drill Machine DJC02-23 commonly known as adsorption drill, it comes with an electromagnet, can be adsorbed on the steel parts of the horizontal, side, top and curved (need to add spacers between the electromagnet and the surface) and drilling on.

Specification:

Product Model                           DJC02-23

Rated Power Input                    1600(W)

Max. Drilling Capacity

Twist Drill Bit                               Φ23(mm)

Core Drill Bit                               Φ50(mm)

Max.Tapping Capacity                20M(Sold Separately)

Magnetism                                 15000(N)

No-load Speed                           130-260/260-520r/min)

Max. Stroke                                220(mm)

Connector                                   Mt3 Shank

Net Weight                                  24.0(kg)
