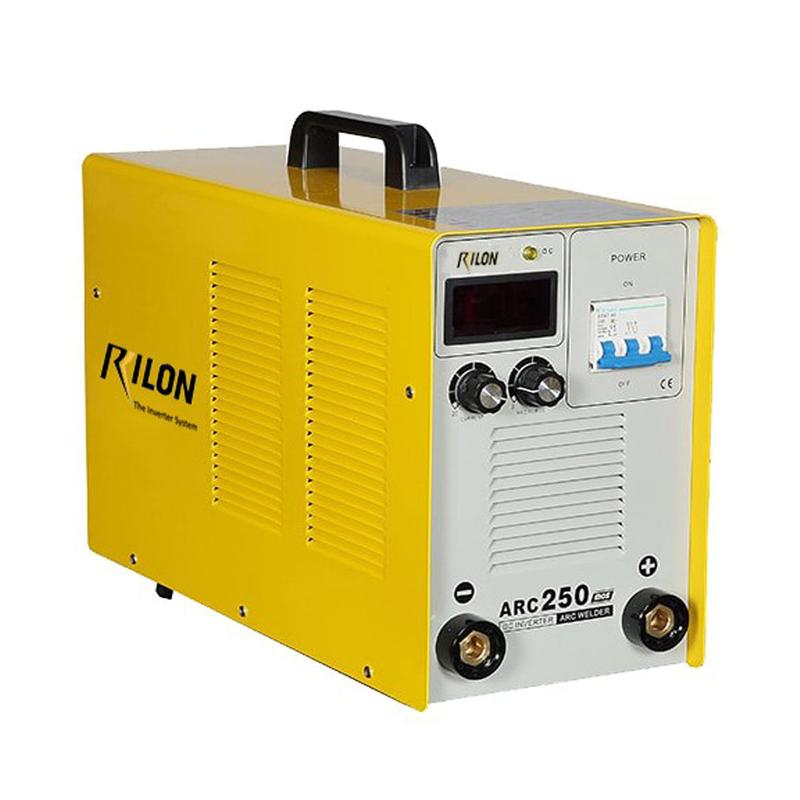

RILON ARC 250 THREE PHASE
RILON ARC 250 THREE PHASE

RILON ARC 250 THREE PHASE

RILON

Product Code:

Availability:In stock

Rs. 15,694.00 Rs. 11,500.00 11,500.00

Qty

Ask about this product
Add to Compare

RILON ARC 250 THREE PHASE

Features:

  • Robust and easy to use.
  • Digital instrument for the welding current.
  • On the front panel knob to adjust the parameter Hot Start.
  • On the front panel knob to adjust the parameter Arc Force.
  • Equipped with VRD system for your safety.
  • Auto-Protection against over-voltage, over-current and over-heated.
  • This equipment is protected by a solid metal casing.

Specification:

Parameters Specification
Rated Input Voltage(V) AC380V±15% 3P
Efficiency(%) 85
Rated Input Current(A) 12.3
Power Factor 0.93
Input Frequency(HZ) 50/60
Protection Grade IP21
Rated Input Power(KVA) 4.5
Weight(kg) 17.5
Current Range(A): 20-250
Electrode Diameter(mm) 2.5-4.0
Open Circuit Voltage(V) 66
Dimension(mm) 455*202*372
Duty cycle at maximum current 60%@40
